Overview

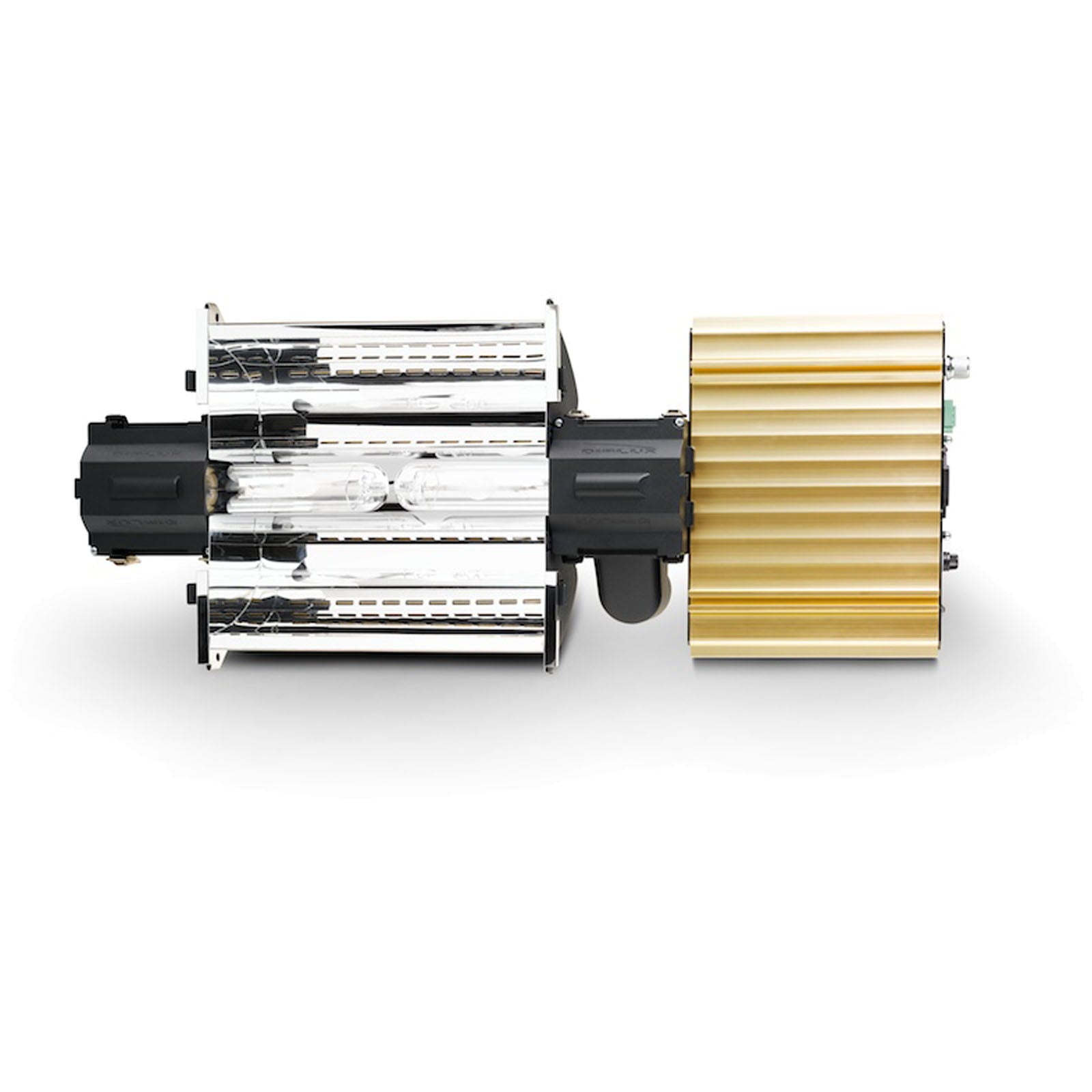

A complete 630W dual-spectrum fixture including the Alpha 98 reflector and two DimLux 315W CDM 3000K lamps, delivering an efficient and adjustable full-spectrum lighting solution.
Feature Highlights
Alpha Optics 98 Reflector — Designed on the SBCS principle with Miro Silver mirrors, achieving the maximum possible efficiency (98%) of any horticultural reflector.
Full Dimming Range — Manual attenuation across 8 positions including shutdown, with smooth attenuation via the Maxi Controller.
Soft-Start/Dim/Off — Protects lamp longevity through gentler power transitions.
EOL Warning Function — Alerts you when lamps need replacing.
Specs
| Dim Levels |
Soft-Off, 330W, 410W, 490W, 560W, 630W, 690W, 760W |
| Power Consumption @630W |
662W, 2.7A at 230V |
| Power Consumption @Boost 760W |
799W, 3.5A at 230V |
| System PPF @760W |
1411 µmol/s |
| Illumination Surface @630W |
0.84m² min - 2m² max |
| Illumination Surface @760W |
1m² min - 2.4m² max |
| Dimensions |
675 x 275 x 130mm |
| Weight |
6.3kg |
Compatibility
Available with NanoTubes option. Compatible with the DimLux Maxi Controller for smooth remote dimming.
