Overview

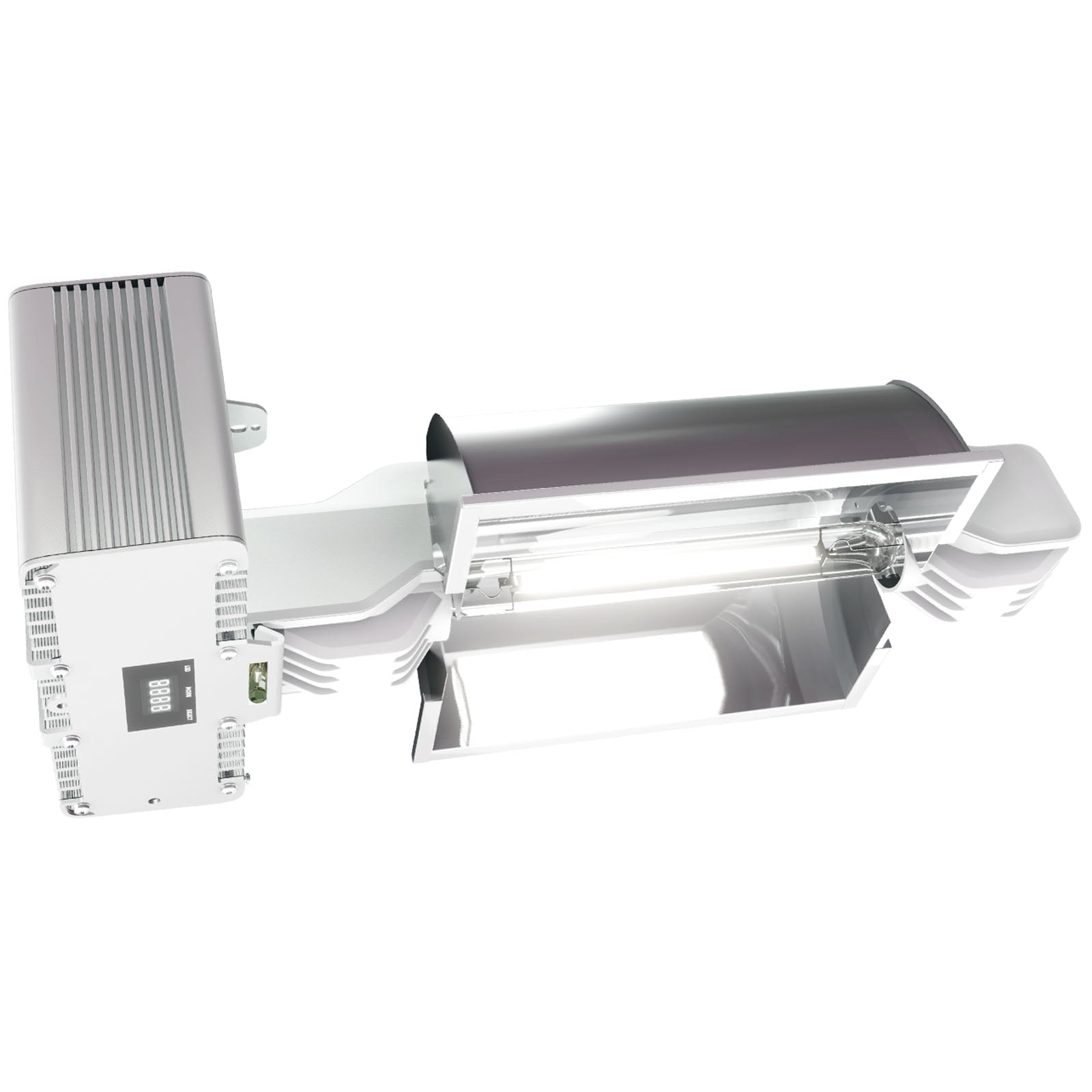

Commercial-grade lighting engineered for greenhouse and large-scale environments, built with a focus on reliability, weatherproofing, and precise leveling across large illuminated areas.
Feature Highlights
Miro 95 Reflector — Uses 99.99% pure aluminium instead of Miro Silver, avoiding the deterioration silver reflectors can suffer in high humidity.
SBCS Design — Single Bounce Clear Sight reflector geometry for maximum efficiency and light output.
Three Reflector Styles — Choose Hybrid (default), Deep, or Wide, each easily swapped even at height.
Closed, Moisture-Protected Ballast — A Geo membrane equalises internal/external pressure to keep moisture out as the ballast cools.
Built-In Spirit Level — Essential for large illuminated areas, ensuring uniform light spread and preventing shadows.
Vertical Ballast Mount — Positioned to minimise light interception, refined through CAD simulation across a full daylight cycle.
Protective Lamp Holder Caps — A dual electrical and fire-safety measure that also secures the lamp holder.
Smart, Upgradable Ballast — Software-upgradable and ready for DimLux's newer digital controller platform.
Specs
| Manual Power Settings |
500 / 600 / 700 / 800 / 900 / 1000 / 1075 / 1150W |
| Bulb |
DIMLUX PRO 1000W HPS 2K, 2100 µmol/s |
| Light Output (PPF) @1000W |
2016 µmol/s |
| Light Output (PPF) @1150W (boost) |
2339 µmol/s |
| System Efficacy |
1.95 µmol/J |
| Voltage |
240V or 277V |
| Dimensions |
54 x 25 x 11.4cm |
| Weight |
~4.1kg |
| Warranty |
3 years |
| Display |
4-digit status and alarm display |
Compatibility
Remote controllable via the onboard dim button, and via WiFi through the DimLux Maxi Controller. Software-upgradable for compatibility with DimLux's newer digital controller platform.
