Overview
Designed to control the LUMii XLEDv6 680W LED fixture, but capable of controlling any LED fixture that accepts a 0-10V control signal — schedule photoperiod, dimming, and sunrise/sunset ramping from one device.
Feature Highlights
Infinitely Variable Dimming — Controls light intensity from 0% to 100%, versus the fixture's built-in manual dimmer which only offers 5 fixed steps (40%, 50%, 60%, 80%, 100%).
Controls Up to 25 Fixtures — A single channel controls a linked array of up to 25 LUMii XLEDv6 680W LED fixtures from one location.
Sunrise/Sunset Ramping — Set gradual ramp periods at each end of the photoperiod to avoid plant shock.

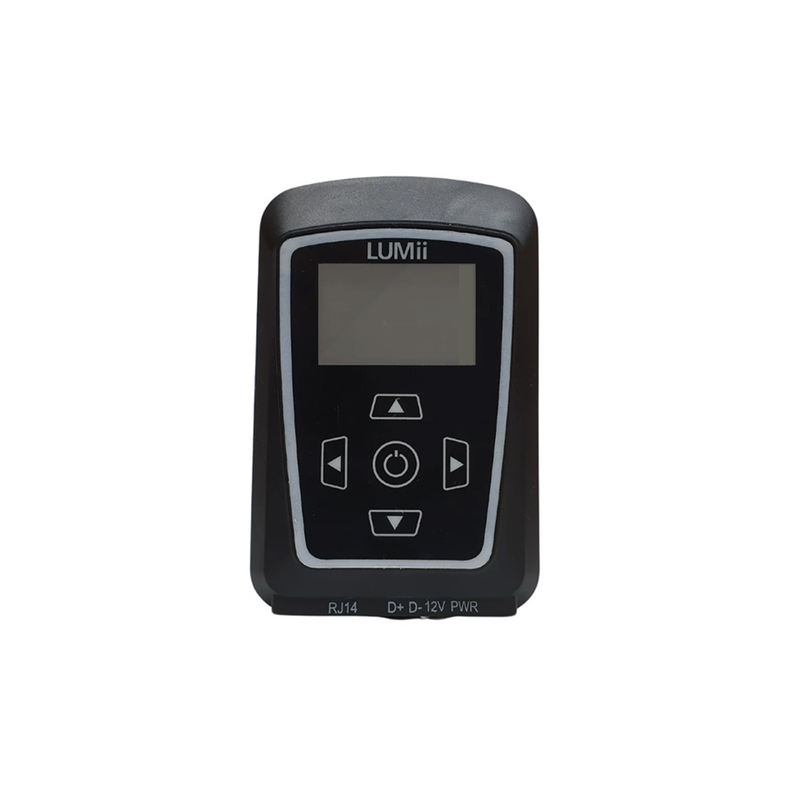

Simple 5-Button Interface — Easy-to-use control with an LED display, wall-mountable, powered via included mains adaptor.
Specs
| Channels |
1 |
| Signal Type |
0-10V |
| Max Fixtures Controlled |
25 |
| 10V Output Control |
0-10V ± 0.1V |
| Adaptor AC Input |
120-240V |
| Controller DC Input |
12V, 1.0A |
| Operating Temperature |
0°C - 35°C |
| IP Rating |
IP20 |
Compatibility
Connects via RJ12 port or wired push-in terminals. Works with the LUMii XLEDv6 680W fixture, or any LED fixture accepting a 0-10V control signal.
