Overview

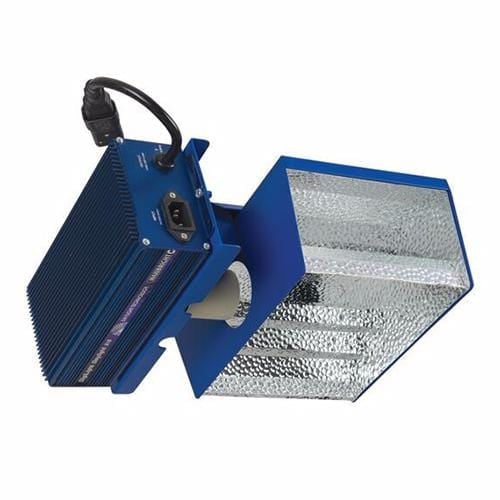

The next generation of CDM lighting kits, combining a Maxibright Daylight 315W ballast directly connected to the Horizon wide-angle reflector — true plug-and-play horticultural lighting.
Feature Highlights
Direct-Connect Design — The ballast fixes to the Horizon Connect reflector via two fixing points, then IEC connectors plug together — genuinely plug-and-play.
Wide-Angle, Even Coverage — Throws light outwards instead of straight down, producing a wider spread than other CDM reflectors while dissipating heat easily for closer canopy placement.
Side-Angle Light Exposure — Light hits plants from the sides as well as the top, helping replicate an outdoor growing environment.
High Efficiency — Delivers roughly 1.9 µmol per watt of electricity — beats many 400-600W HPS kits at just 315W.
Specs
| Power |
315W |
| Efficiency |
~1.9 µmol/W |
| Ballast Dimensions |
270 x 185 x 75mm |
| Coverage Footprint |
Up to 1.2 x 2.4m |
Compatibility
Designed for Philips/Maxibright 315W CDM/CMH lamps (Daylight or Agro). Usable as a stand-alone or supplementary light, ideal between HPS systems.
